Factory price Steel tank longitudinal welding seam crushing machine from Trancar Industries.
Factory price Steel tank longitudinal welding seam crushing machine from Trancar Industries
How to treat welding seams on steel tank body before polishing? -Crushing flatten

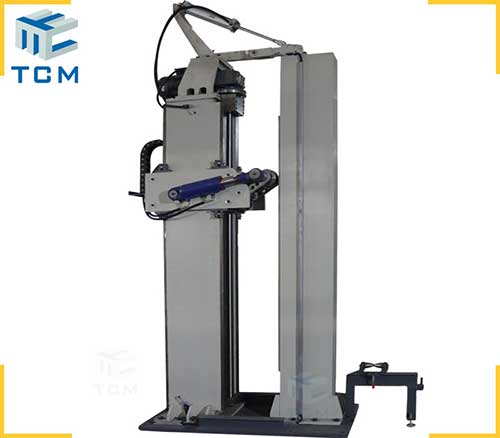

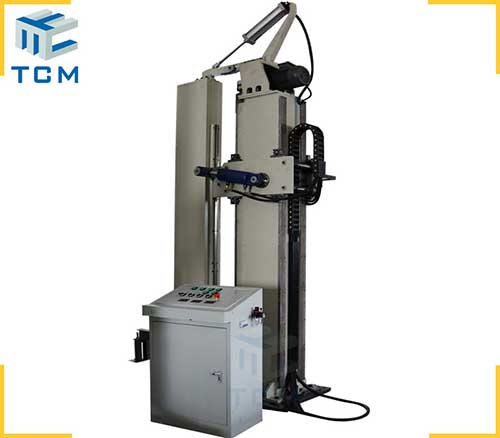

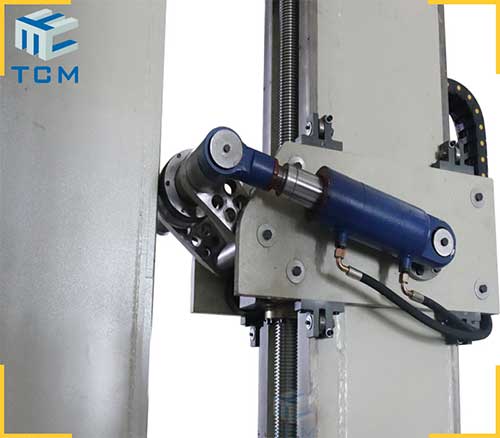

TCM-LF automatic welding seam crushing machine is designed for steel tank shell welded seams surface treatment before polishing such as flatten & crush & planishing treatment after welding,and
to make steel tank with better surface thus to get higher quality Ss tanks.It's mainly for crushing steel tank longitudinal welded seams & lines,crushing tank vertical welded joints and planishing vessel longitudinal welding seams.It is widely applied in the industries of pharmaceuticals,chemical,
environmental purification,food & beverage,water filtration,etc.
Steel tank longitudinal welding seams crushing machine parameter:
Normal configuration(customer design acceptable) | ||
Steel metal tank size | Tank shell diameter | ≧ 500 mm |
Tank / Welded Seam Length | 1800 mm /Custom design | |
Tank shell Max.Weight | 1 Ton / 2 Ton / 5 Ton /10 Ton | |
Flatten Roller Move Speed | ≧2500 mm/minute | |
Welded Seam Width | 50-70mm / Based on demands | |
Flatten machine size | Machine Dimension | 2000*900*3200mm |
Operating pressure | 12 Mpa | |
Input total Power | / | 5 kw |
Power Supply | 380V 415V / 50Hz 60HZ / 3p or Customization | |
Machine Weight | / | 2200kg |
Color | Grey/Green/Blue/Red/Yellow Custom design | |
