Trancar Industries custom design longitudinal welds planisher welding seam planishing machine for sale with best factory price

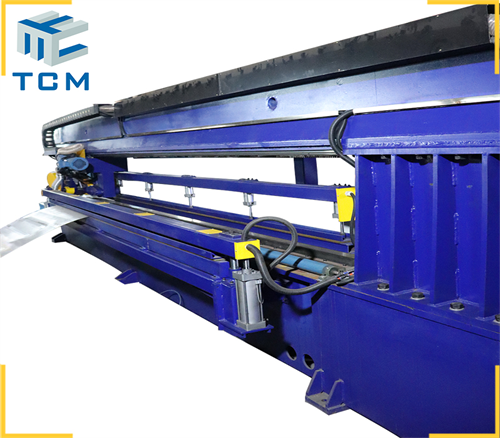

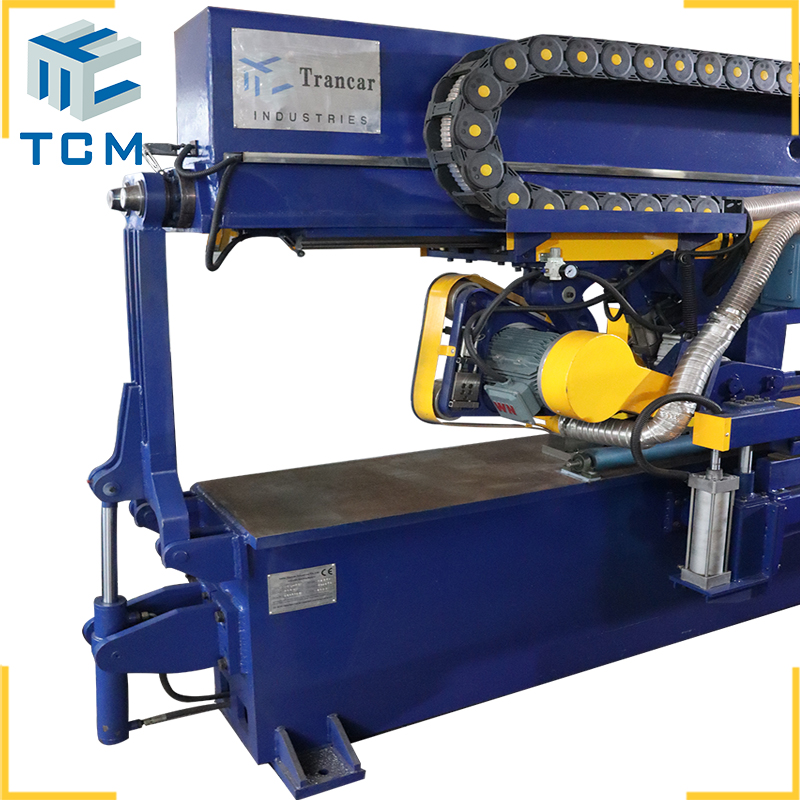

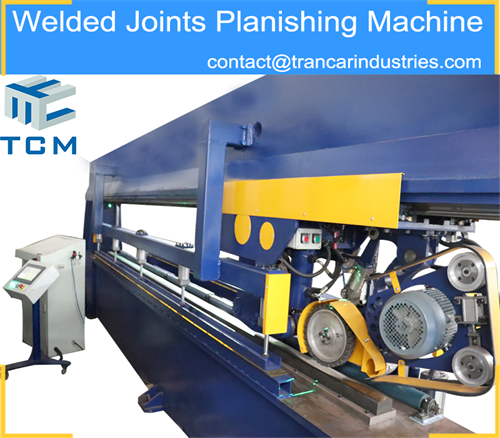

Steel sheet tank shell longitudinal welds planisher welding seam planishing machine

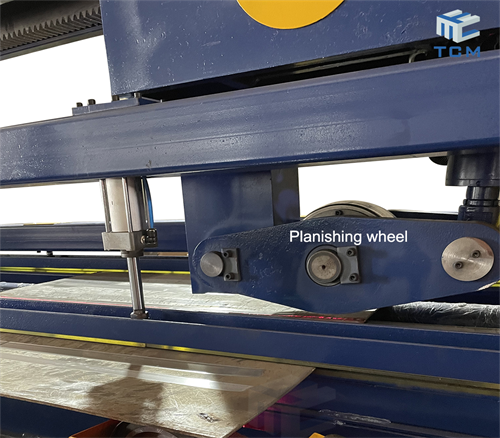

TCM-LP automatic welding seam planishing machine weld planisher is designed for steel tank shell and steel sheet surface longitudinal welded seams surface treatment before polishing such as flatten & crush & planishing treatment after welding,and to make steel tank or steel sheet with better surface thus to get higher quality Ss tanks.It’s mainly for crushing steel tank longitudinal welded seams & lines,crushing tank vertical welded joints,planishing steel sheet long welding line and planishing vessel longitudinal welding seams.It is widely applied in the industries of pharmaceuticals,chemical,environmental purification,food & beverage,water filtration,etc.
Steel tank longitudinal weld planisher parameter:
Normal configuration(customer design acceptable) | ||
Steel metal tank size | Tank shell diameter | ≧ 1000 mm |
Tank / Welded Seam Length Max. | 4000 mm / 5000mm Custom design | |
Tank shell Max.Weight | 1 Ton / 2 Ton / 5 Ton /10 Ton | |
Flatten Roller Move Speed | 0.05~2m/min | |
Welded Seam Width | 50-70mm / Based on demands | |
Flatten machine size | Machine Dimension | 5800*900*1800mm |
Operating pressure | 21 Mpa | |
Input total Power | / | 28 kw |
Power Supply | 380V 415V / 50Hz 60HZ / 3p or Customization | |
Machine Weight | / | 4500kg |
Color | Grey/Green/Blue/Red/Yellow Custom design | |

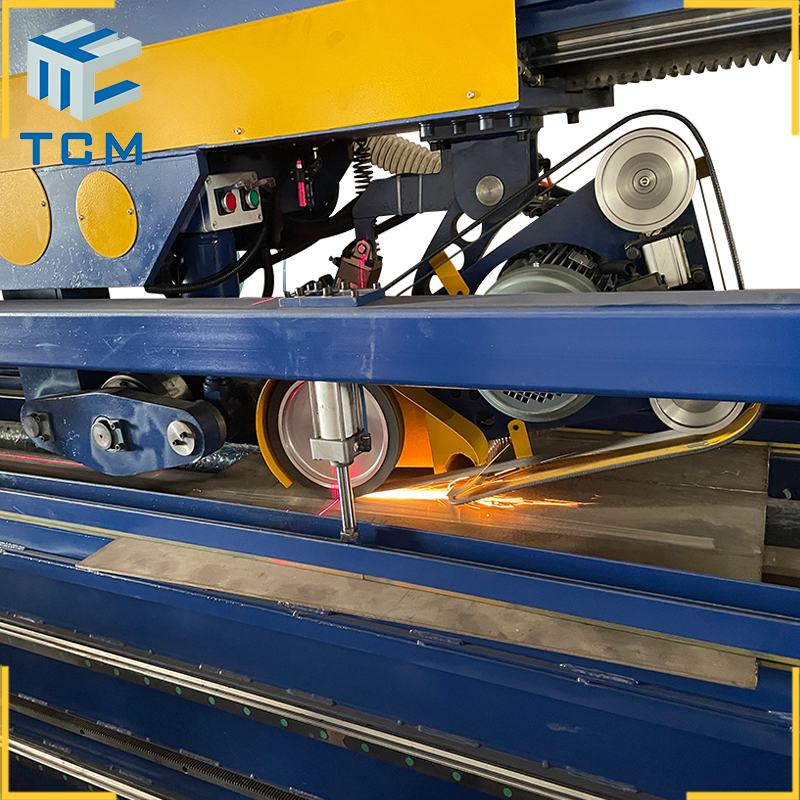

Beside for welds planishing also can do welds seam surface grinding polishing job.Contact Trancar Industries for more.
