Online shopping for welding seam flatten machine and longitudinal seam crush machine from a great selection at tcmgrinding.

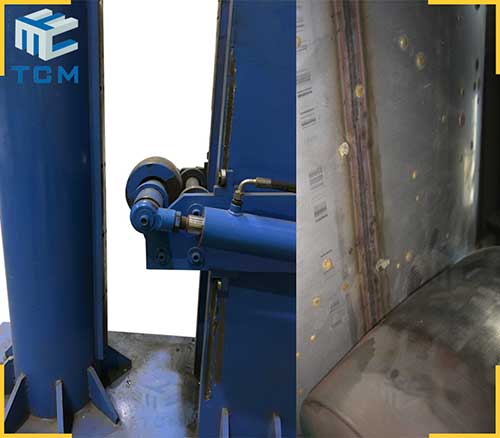

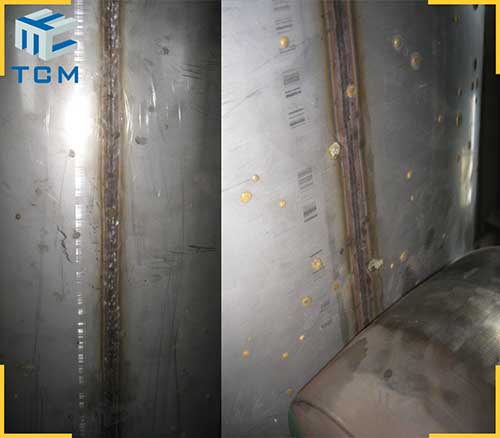

TCM-LF automatic flatten machine is designed for steel tank shell welded seams surface flatten & crush & planishing treatment after welding,and to make steel tank with better surface.It’s mainly for flatten steel tank longitudinal welded seam,crushing tank vertical welded joints and planishing vessel longitudinal welding seams.It is widely applied in the industries of pharmaceuticals,chemical,environmental purification,food & beverage, water filtration,etc.
TCM-LF Steel tank longitudinal welded seam flatten machine parameter:
Normal configuration(customer design acceptable) | ||
Steel metal tank size | Tank shell diameter | ≧ 500 mm |
Tank / Welded Seam Length | 1800 mm /Custom design | |
Tank shell Max.Weight | 1 Ton / 2 Ton / 5 Ton /10 Ton | |
Flatten Roller Move Speed | ≧2500 mm/minute | |
Welded Seam Width | 50-70mm / Based on demands | |
Flatten machine size | Machine Dimension | 2000*900*3200mm |
Operating pressure | 12 Mpa | |
Input total Power | / | 5 kw |
Power Supply | 380V 415V / 50Hz 60HZ / 3p or Customization | |
Machine Weight | / | 2200kg |
Color | Grey/Green/Blue/Red/Yellow Custom design | |
