Searching supply information of excellent Solid Bar Polishing Machine, online negotiating the wholesale and latest price of Pipe Grinding Machine, please feel free to buy!

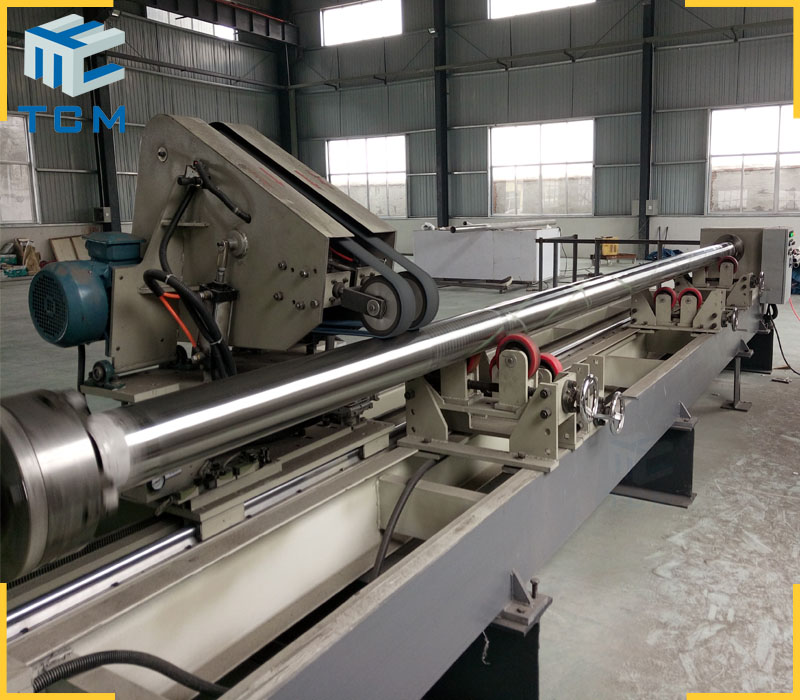

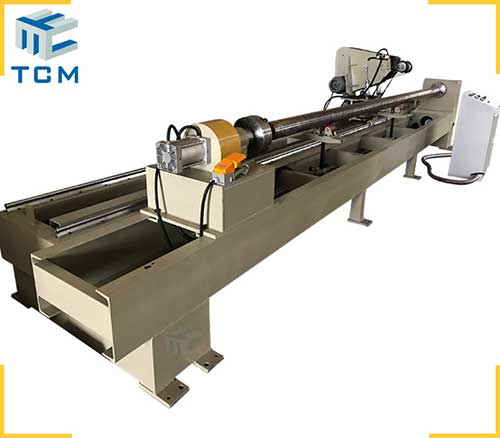

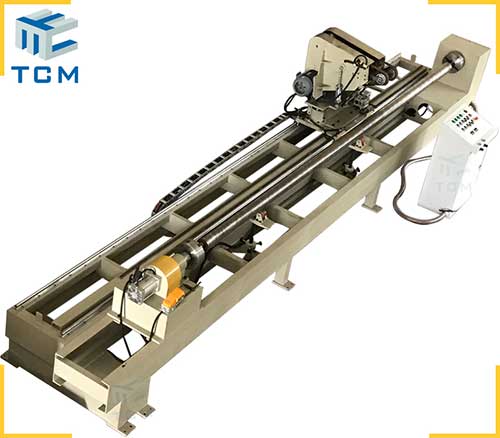

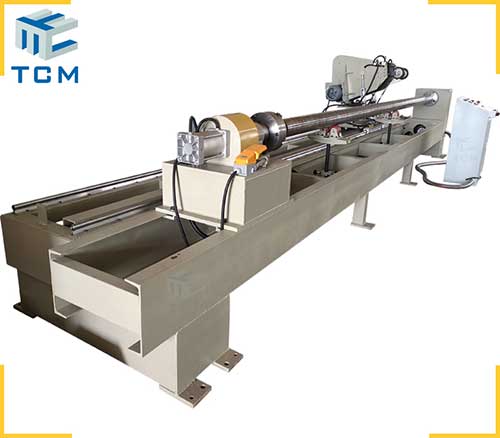

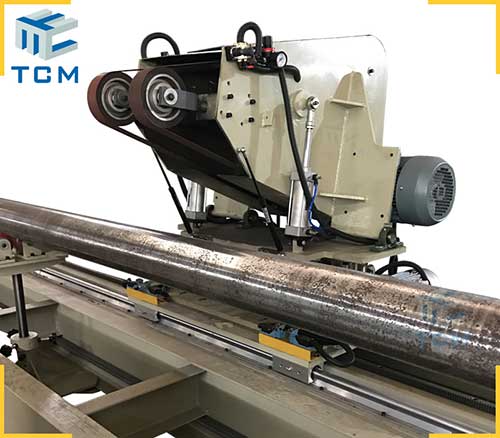

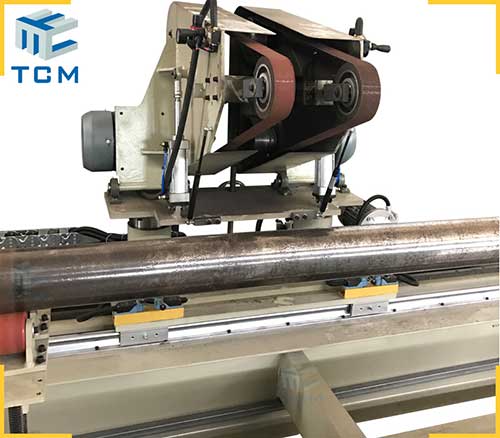

Trancar Industries Model TCM-WP automatic polishing machine is design for stainless steel metal tube product’s surface grinding and buffing,such as it could polish steel tube pipe,Solid bar,hydraulic cylinder exterior surface in automatic way.TCM-WP pipe polishing machine equip with double variable frequency grinding motors both of them power is 7.5 KW.Both grinding wheels and abrasive sanding belts are available for this type tube pipe polishing machine.It’s widely used in the fields of pharmaceutical industry,medical industry,food industry,water purification,Pressure vessel industry,Cosmetic industry,waste water treatment,Semiconductor industry,Photovoltaic industry etc.
TCM-WP Steel pipe tube automatic polishing machine parameter:
Normal configuration(customer design acceptable) | ||
Steel metal Pipe size | Max.Diameter | 40-800 mm |
Thickness | 3-10 mm | |
Length | ≦12,000 mm | |
Machine Dimension | (L×W×H) 14500×1200×1200mm | |
Pipe Roller Max.Loading capacity | 1 Ton / 2 Ton / 5 Ton / 7Ton for options | |
Polishing Precision | Surface roughness(Ra) | <=0.25μm |
Production Efficiency | Polishing working speed | 6~12 m2/h |
Input total Power | 22 kw | |
Power Supply | 380V 415V / 50Hz 60HZ / 3p or Customization | |
Machine Weight | / | 3800kg |
Color | Grey/Green/Blue/Red/Yellow Custom design | |
Suitable Polishing Materials | Abrasive sanding belts,grinding wheels. (flap/cloth/ emery/Nylon wheel etc) | |
For option | Water cooling system is available during polishing. | |
