Metal sheets PLC automatic Sanding chamfering machine

Best factory price metal sheets sanding chamfering machine from Trancar Industries

Quantity: - +

Product Description

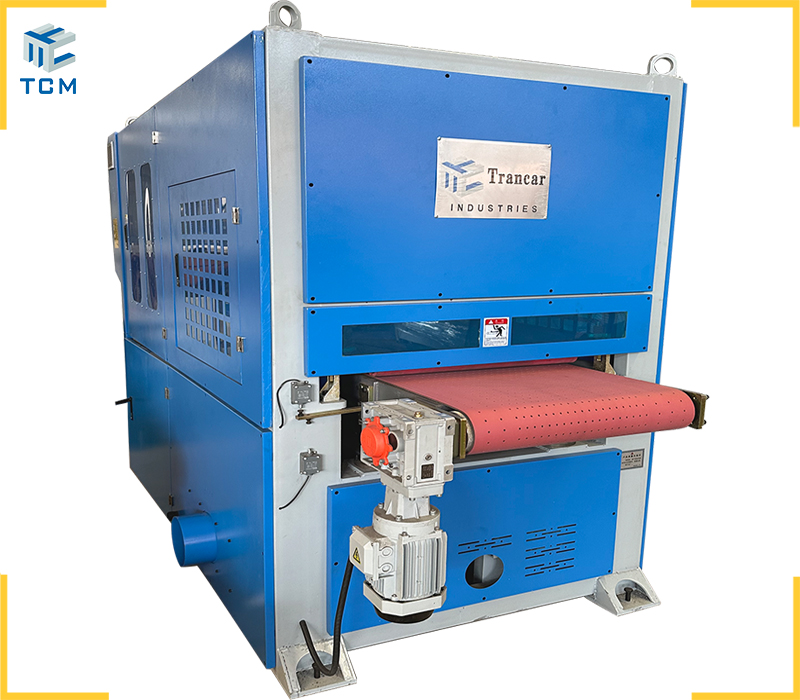

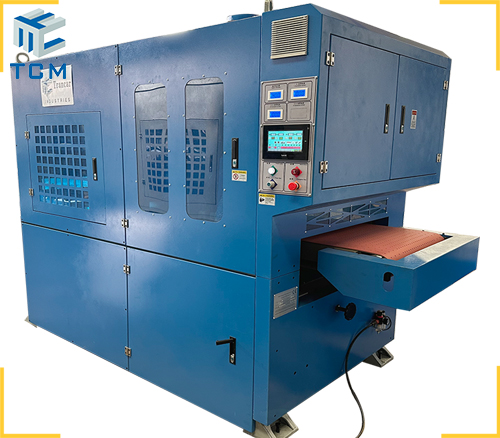

Metal sheets PLC automatic Sanding chamfering machine

Hefei Trancar Industries Provides all kinds of steel metal surface treatment solutions and machinery with best factory price.Such as steel tank surface polishing,steel sheet polishing machine,metal sheet sanding deburring machines etc.


TCM-PM series Sanding & chamfering machine is mainly used for metal surface treatment,specially designed for laser cutting burrs’ cleaning,Trancar Industries PLC sanding & chamfering machine widely used for laser cutting parts’ surface finishing brushing and deburring,removing steel metal sheet’s oxide layer, also for steel plate surface rust removing.



Trancar Industries automatic Sanding chamfering machine main features:

1. application scope:used for rust removal, decontamination (oil stains,corrosion, paint,powder,etc). deburring,scratch removal grinding, polishing, chamfering and other functions of various metal materials (such as iron,aluminum, copper, stainless steel etc.),stone,wood,synthetic board etc.

2.high sand and polishing efficiency, can replace traditional processes such as manual polishing and grinding.

3.support non-standard customized products to meet different customer needs.

4.touch screen with siemens plc and servo motor to improve product accuracy.

5.energy saving and environmentally friendly,stable operation,and simple maintenance.

6. support multi machine linkage and production line matching.


Custom design service is available.

Sanding sheet’s width

50mm-1600mm

Processing sheet thickness

1-100mm

Sanding sheet’s length

At least 80mm

Conveyor feed speed

1 ~ 10m/min

Working air pressure

0.5-0.7MPa

Required dust suction device wind speed

20-30m/s

Machine weight

3000kg

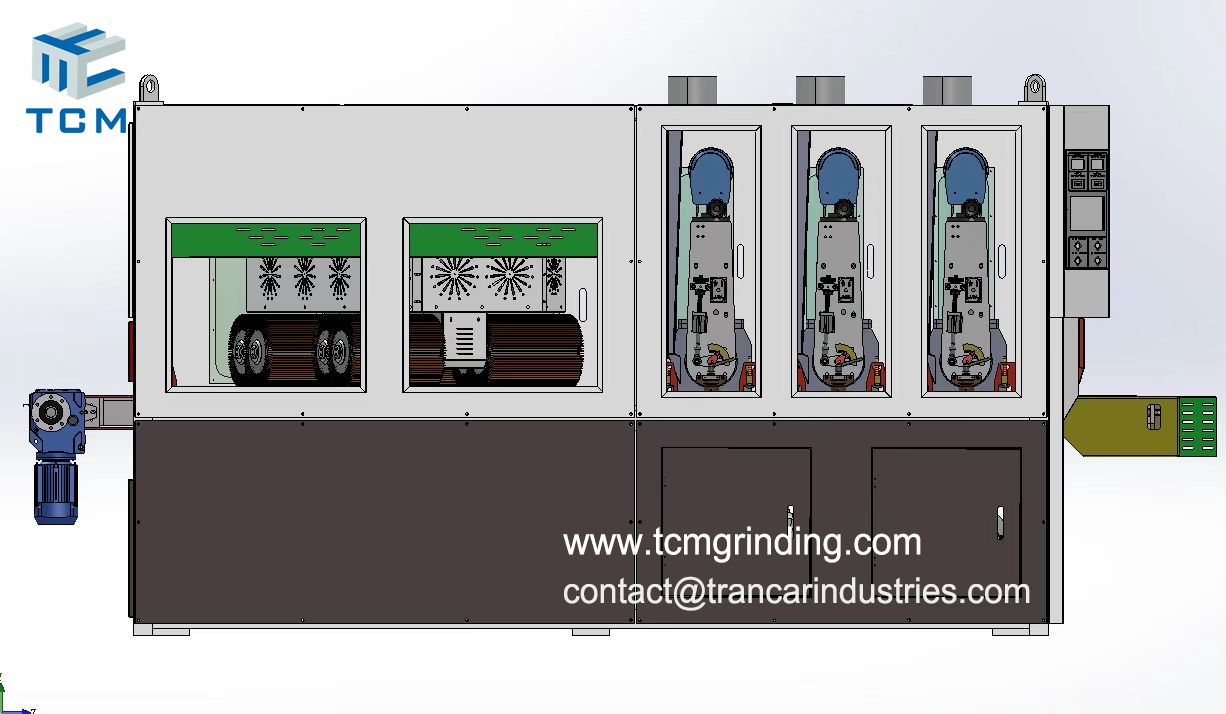

customs design .jpg

效果图  (6).jpg
