Our company supplies Surface Automatic Polishing Machine which is the Surface Automatic Polishing Machinebrand in China, and sells various kinds of Polishing Machine.

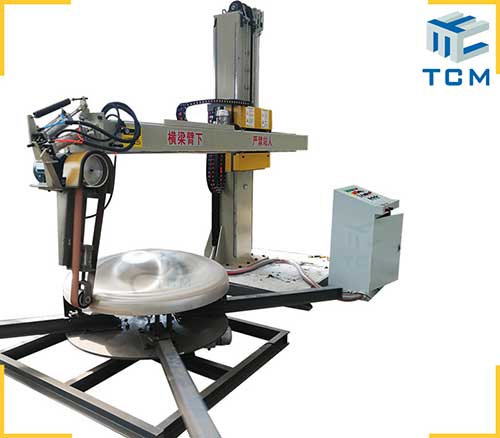

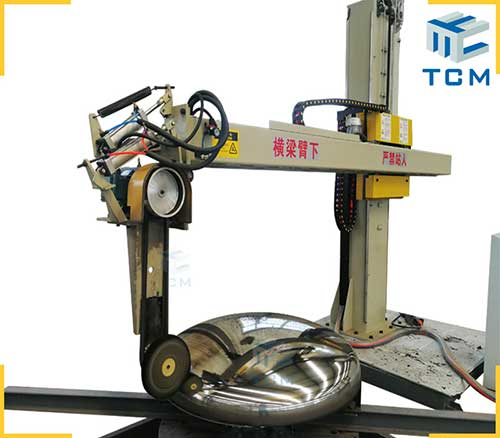

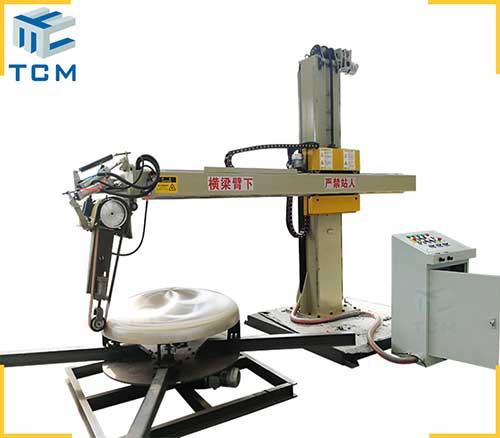

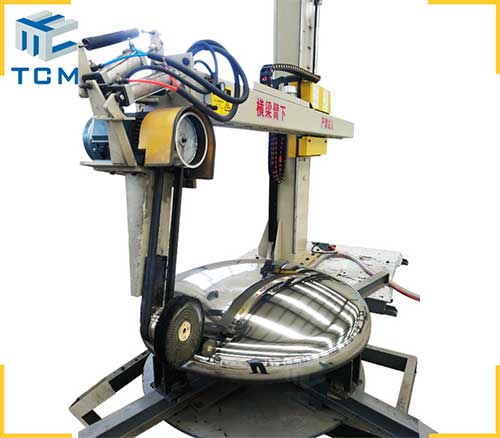

Steel Metal Tank Cap Outer Surface Automatic Polishing Machine
Trancar Industries steel tank cap outer surface automatic polishing machine is made up of column and boom,it’s for steel metal tank cap,dish end,tank head / bottom / cone inner outer surface Grinding and polishing.This model is mainly used for the surface polishing stainless steel / metal /aluminum /copper dished end / tank head / cylinder head.Also could for vertical tank surface grinding.
This steel tank cap surface automatic polishing machine is suitable for all kinds of standard head polishing,conical head polishing,spherical head surface polishing,dish head polishing,special heads polishing,stainless steel oval head inside & outside surface grinding polishing,pressure vessel head polishing etc.it’s widely used in the fields of pharmaceutical industry,medical industry,food & Beverage industry,water purification,Pressure vessel industry,Cosmetic industry,waste water treatment,Semiconductor industry,Photovoltaic industry etc.#steeltankcapsurfacepolishingmachine.
We also have automatic polishing machine for dish head inner surface grinding.
Automatic dish head interior surface grinding machine.
Tank Cap Outer Surface Automatic Polishing Machine parameter:
Normal configuration(customers’ requirement acceptable) | ||
Available Polishing workpiece size (Tank head/dish ends) | Inside & outside diameter | 450~5000mm / 6000 mm |
Turntable Max.Loading capacity | 1 Ton / 2 Ton /5 Ton / 10 Ton for option or custom design 15 Ton,20 Ton. | |
Polishing Precision | Surface roughness(Ra) | <=0.25μm |
Production Efficiency | / | 6~12 m2/hour |
Total Dimension | Machine Dimension | 3500*1600*3080mm |
Column Dimension | 300x400x8 mm | |
Beam Dimension | 150x200x6 mm | |
Input total Power | / | 12 kw |
Power Supply | 380V 415V / 50Hz 60HZ / 3p or Customization | |
Color | Grey/Green/Blue/Red/Yellow Custom design | |
Machine Weight | / | 2250kg |
Suitable Polishing Material | Abrasive sanding belts,grinding wheels (flap/cloth/ emery/Nylon wheel etc) | |
