Hefei Trancar Industries provide best price custom design automatic polishing machine for Hydraulic cylinder chromed rod surface grinding linishing.
Hydraulic cylinder chromed rod grinding linishing machine
Automatic rod grinding machine from Hefei Trancar Industries.

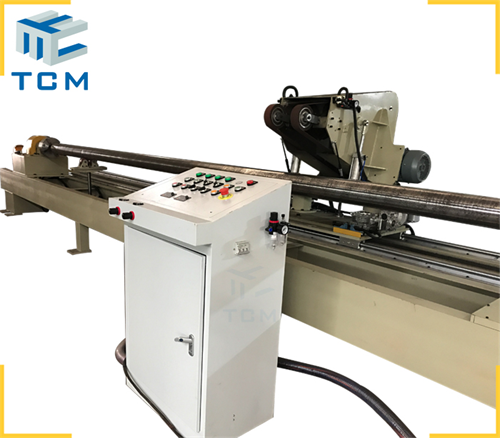

Trancar Industries Model TCM-WP automatic grinding machine is design for Hydraulic cylinder chromed rod surface grinding linishing,Beside for chromed rods surface polishing,its also could for steel cylinder products surface grinding,such as it could polish steel tube pipe,Round Solid bar,hydraulic cylinder exterior surface in mechanical way.TCM-WP rod grinding machine equip with double variable frequency grinding motors both of them power is 7.5 KW.Both grinding wheels and abrasive sanding belts are available for this type automatic polishing machine.It's widely used in the fields of pharmaceutical industry,medical industry,food industry,water purification,Pressure vessel industry,Cosmetic industry,waste water treatment,Semiconductor industry,Photovoltaic industry etc.
Hydraulic cylinder chromed rod grinding linishing machine parameter:
Normal configuration(customer design acceptable) | ||
chromed rod | Max.Diameter | 40-800 mm |
Thickness | 3-10 mm | |
Length | ≦12,000 mm | |
Machine Dimension | (L×W×H) 14500×1200×1200mm | |
Rod Roller Max.Loading capacity | 1 Ton / 2 Ton / 5 Ton / 7 Ton /8 Ton for options | |
Polishing Precision | Surface roughness(Ra) | <=0.25μm |
Production Efficiency | Polishing working speed | 6~12 m2/h |
Input total Power | 22 kw | |
Power Supply | 380V 415V / 50Hz 60HZ / 3p or Customization | |
Machine Weight | / | 3800kg |
Color | Grey/Green/Blue/Red/Yellow Custom design | |
Suitable Polishing Materials | Abrasive sanding belts,grinding wheels. (flap/cloth/ emery/Nylon wheel etc) | |
For option | Water cooling system is available during polishing. | |
For more Hydraulic cylinder chromed rod grinding linishing machine,please let us know your chromed rod data,best grinding linishing solution will be sent to you accordingly.#chromedrodgrindingmachine #rodlinishingmachine
Packaging and delivery:
1,Plywood case+PE Film+ Carton protection.
2,Based on your order requirements.
