Hefei Trancar Industries provide CNC full automatic polishing machine for stainless steel tank cap,vessel heads inner outer surface grinding polishing ad buffing.
CNC full automatic Steel tank cap grinding machine from China

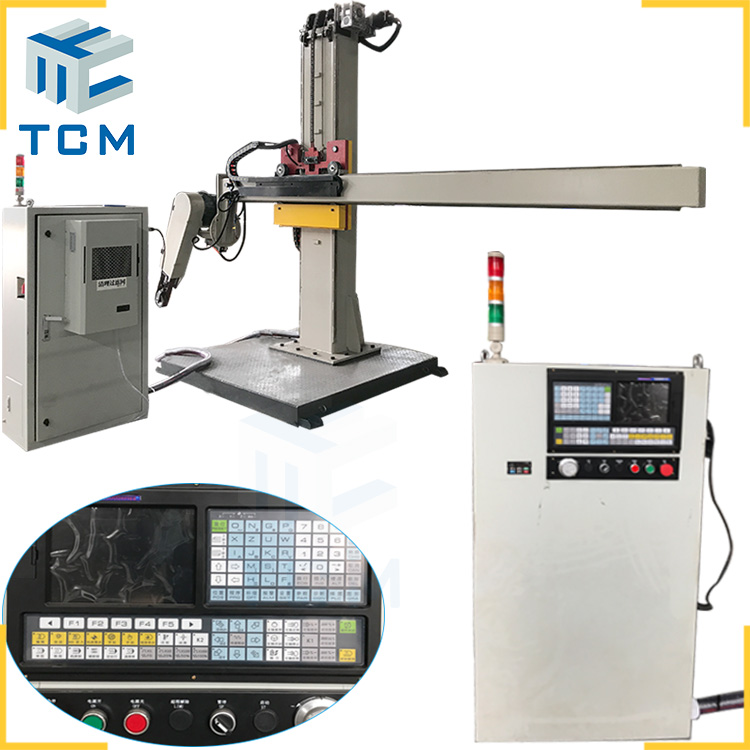

TCM-CNC-D column and boom manipulator polishing machine is CNC full automation polishing machine for stainless steel tank cap vessel heads surface polishing,steel tank end surface grinding and steel tank head surface buffing.It could process steel products’ inner and exteriors.And widely used in stainless steel Elliptical head,flat bottom head,torispherical head,conical head and hemispherical heads manufacturers and fabricators.
Hefei Trancar Industries company fabricating CNC polishing machine based on client’s dish end’s dimensions.China Factory Price CNC steel surface grinding equipment for sale with best quality.Custom design service is available.

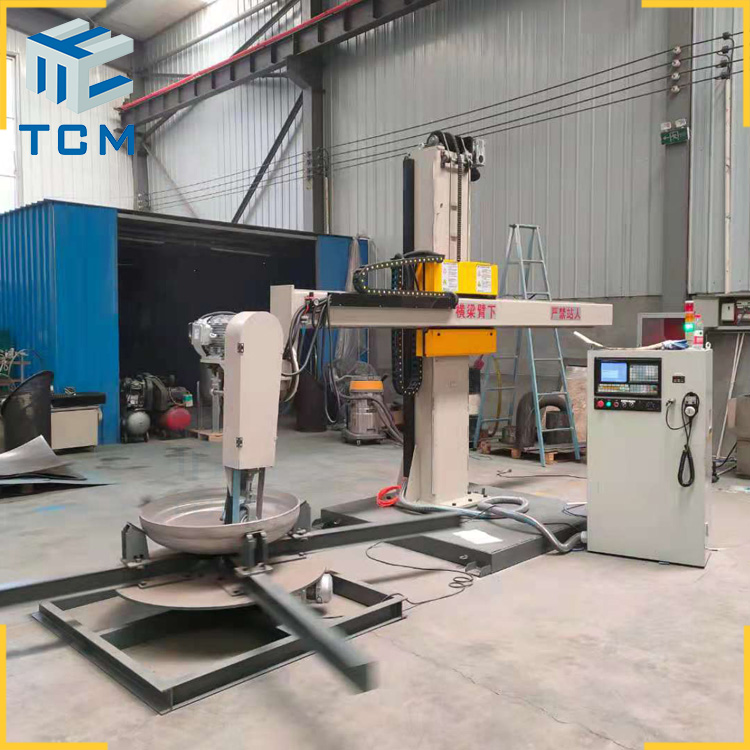

TCM CNC polishing machine is made up of metal beam,column,machine base(foot),control cabinet and turntable,also with Siemens brand or Danfo brand CNC program,More than 100 polishing programs could be set in our CNC polishing machine.

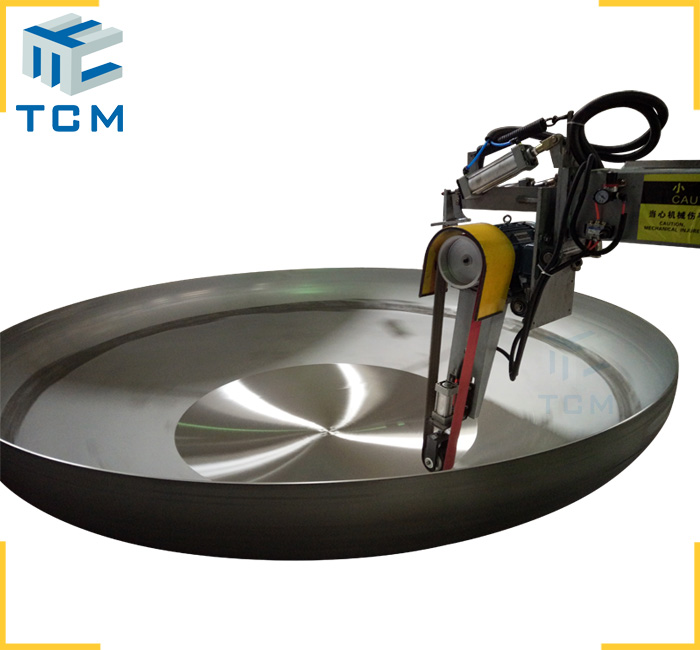

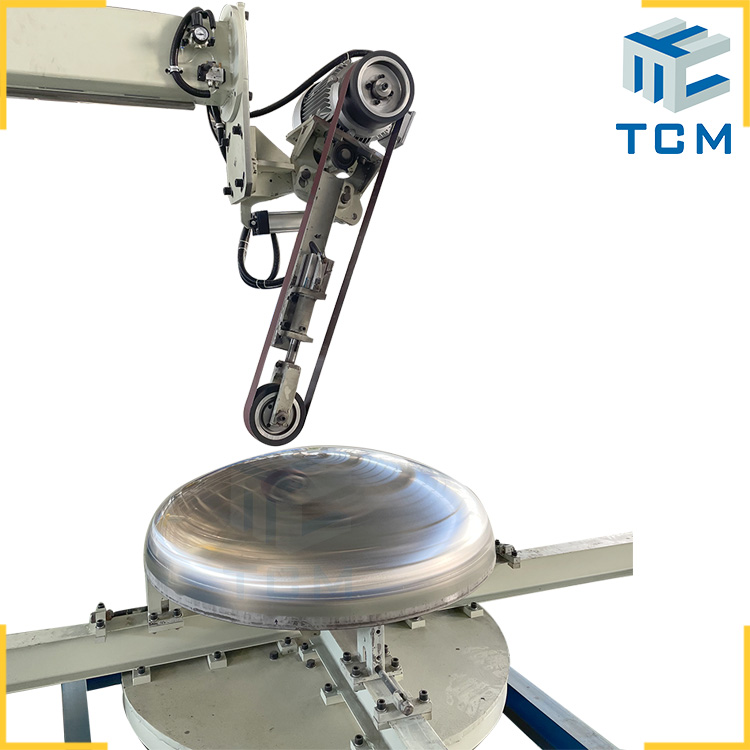

Using impeller with different grinding mesh grit to meet the demand on polishing.At the same time,both abrasive sanding belts and grinding wheels are available on Trancar steel dish end CNC polishing machines.
TCM steel tank cap CNC polishing machines are widely used in the fields of pharmaceutical,medical machinery,food & beverages,water purification,Pressure vessel,Paper and pulp industry,Fine chemical,Petrochemical,biochemistry,petroleum pipeline,Cosmetic,waste water treatment,Semiconductor industry,Photovoltaic industry etc.
Trancar CNC steel tank cap surface grinding machine parameter:
Normal configuration(customer design acceptable) | ||
Dish end size | Outside diameter | 300~5000mm |
Inner diameter | 500~5000mm | |
Height/Depth | Max.750/1500/2000mm | |
Control system | SIEMENS CNC program | |
Danfoss CNC program | ||
Turntable Max.loading capacity | 1 Ton / 2 Ton /5 Ton / 10 Ton for option or custom design 15 Ton,20 Ton. | |
Polishing Precision | Surface roughness(Ra) | <=0.25μm |
Production Efficiency | Polishing working speed | 6~12 m2/h |
Total Dimension | Machine Dimension | 4500*1600*3080mm |
Column Dimension | 300x400x8 mm | |
Beam Dimension | 150x250x6 mm | |
Input total Power | / | 15 kw |
Power Supply | 380V 415V / 50Hz 60HZ / 3p or Customization | |
Machine Weight | / | 3000kg |
Color | Grey/Green/Blue/Red/Yellow Custom design | |
Suitable Polishing Materials | Abrasive sanding belts,grinding wheels. (flap/cloth/ emery/Nylon wheel etc) | |
Trancar Indsutries Machinery’s packaging and delivery:
Related TCM machines recommend:
Beside steel tank cap CNC polishing machine,Hefei Trancar Industries also provide
semi-automatic button control steel tank polishing machine,PLC wire rod polishing equipment,welded joints planishing equipments,semi-automatic dish head polishing machine etc.
CONTACT for more steel surface automatic grinding solutions.
