Factory price Tank shell polishing machine,stainless steel tank shell polishing machine,automatic tank shell buffing machine from Trancar Industries Co.,Ltd.

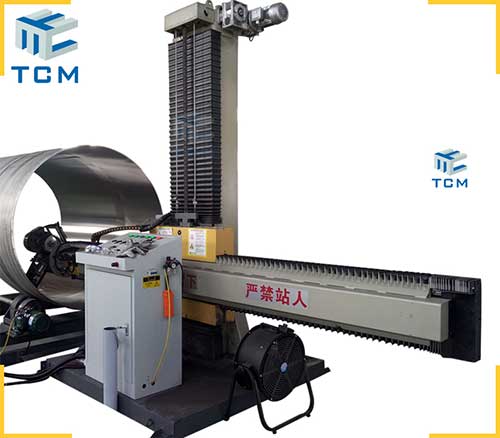

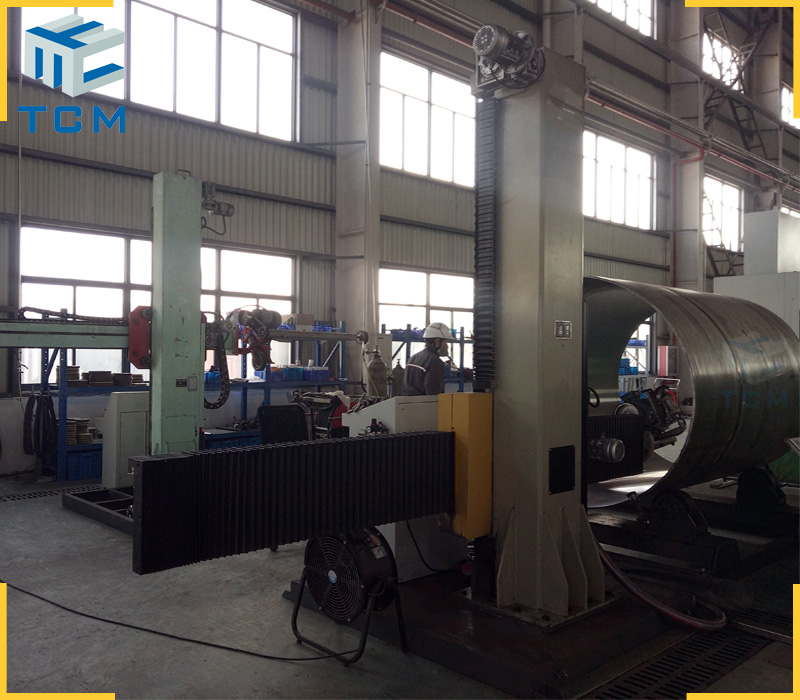

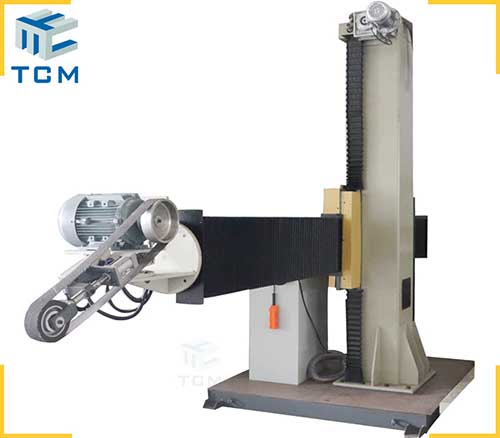

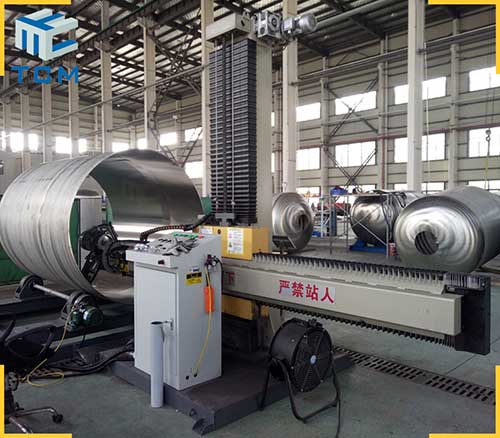

Stainless steel tank shell buffing automatic polishing machine
Trancar Industries TCM-T column and boom manipulator stainless steel tank shell automatic polishing machine,This model is suitable for not only all kinds of stainless steel tanks ,industrial tanks internal and external polishing grinding and buffing,but surface of the cylinder inside and outside,pressure vessel,industrial container and the circumferential welded seams polishing.
Our polishing machines are widely used in the fields of pharmaceutical industry,medical industry,
food beverages industry,water purification,Pressure vessel industry,Cosmetic industry,waste water treatment,Semiconductor industry,Photovoltaic industry etc.It could buffing all kinds of steel metal cylinder tanks such as,atmospheric / pressure tanks,CIP-tanks,Milk / Cream / Yoghurt Tanks,Chocolate Processing tanks,Beer Fermentation Tanks,Yeast propagation Tanks,Mixer,Bio / Cosmetics Reactors,Pharma Mixers,centrifugal cylinder shell,crystal furnace tank shell etc.
Automatic Steel Tank Shell Buffing Polishing Machine Parameter:
Normal configuration(customer design acceptable) | ||
Steel tank size | Outside diameter | 400~5000mm / 7000 mm |
Inside diameter | 400~5000mm / 7000 mm | |
Length | <=5000mm / 8000 mm | |
Tank Roller Max.Loading capacity | 1 Ton,2 Ton,5 Ton,10 Ton for option or customization 13T,15 T 20T. | |
Polishing Precision | Surface roughness(Ra) | <=0.25μm |
Production Efficiency | Polishing working speed | 6~12 m2/h |
Total Dimension | Machine Dimension | 3500*1600*3080mm |
Column Dimension | 300x400x8 mm | |
Beam Dimension | 150x200x6 mm | |
Input total Power | / | 12 kw |
Power Supply | 380V 415V / 50Hz 60HZ / 3p or Customization | |
Machine Weight | / | 2250kg |
Color | Grey/Green/Blue/Red/Yellow Custom design | |
Suitable Polishing Material | Abrasive sanding belts,grinding wheels (flap/cloth/ emery/Nylon wheel etc) | |
